Steel strip Degreasing Line
Product description

Steel strip Degreasing Line

During the rolling process of cold-rolled strip steel, for the sake of process requirements, palm oil or similar artificial synthetic oils are usually used as lubricants. This lubricant will leave an oil film on the surface of the strip steel. When this oil film undergoes annealing in the annealing furnace, due to heating decomposition, carburization phenomenon and residue formation will occur, which will affect the composition and surface cleanliness of the strip steel, and subsequently affect the quality of subsequent processing. The function of this unit is to clean the surface of the strip steel using chemical and electrochemical methods to meet the quality requirements for subsequent processing. This electrochemical degreasing unit can also unwind the cold-rolled steel coil, cut off the excessively thick part at the tail of the strip steel, adjust the weight of the steel coil, and roll it with appropriate tension.



Process flow
1

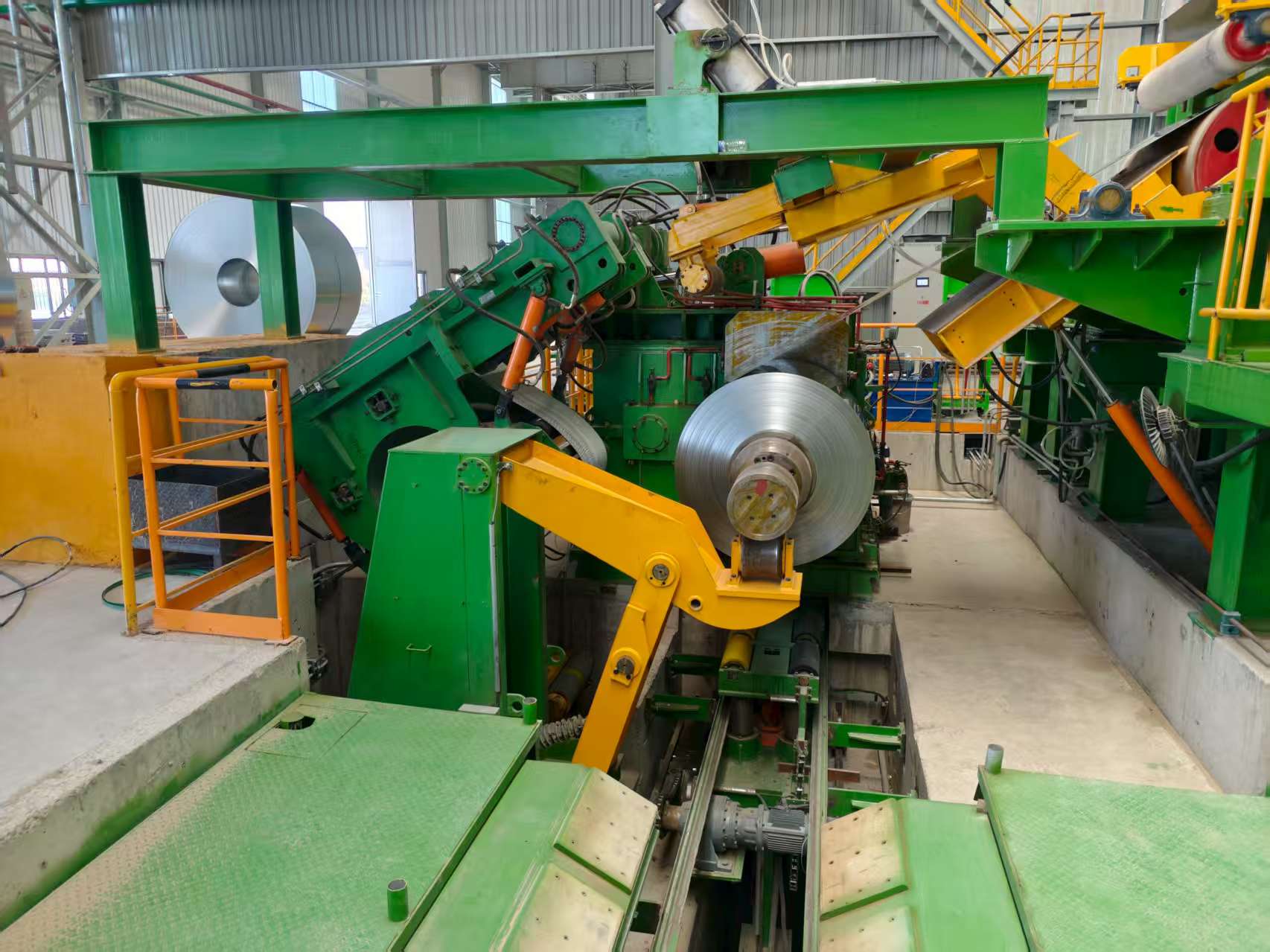

Uncoiling
2

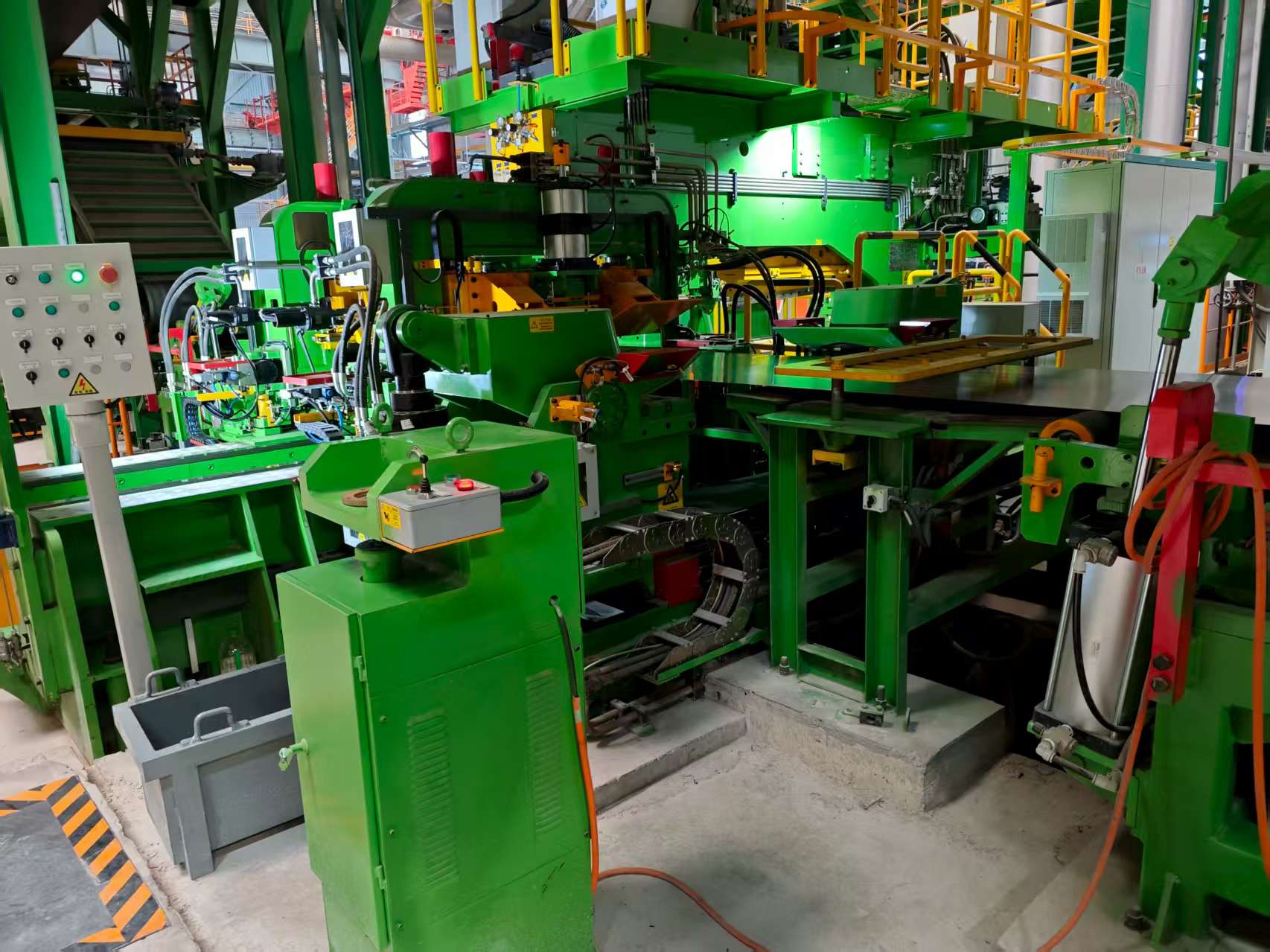

Welder
3
Pre degreasing
4
Degreasing
5
Electrolytic degreasing
6

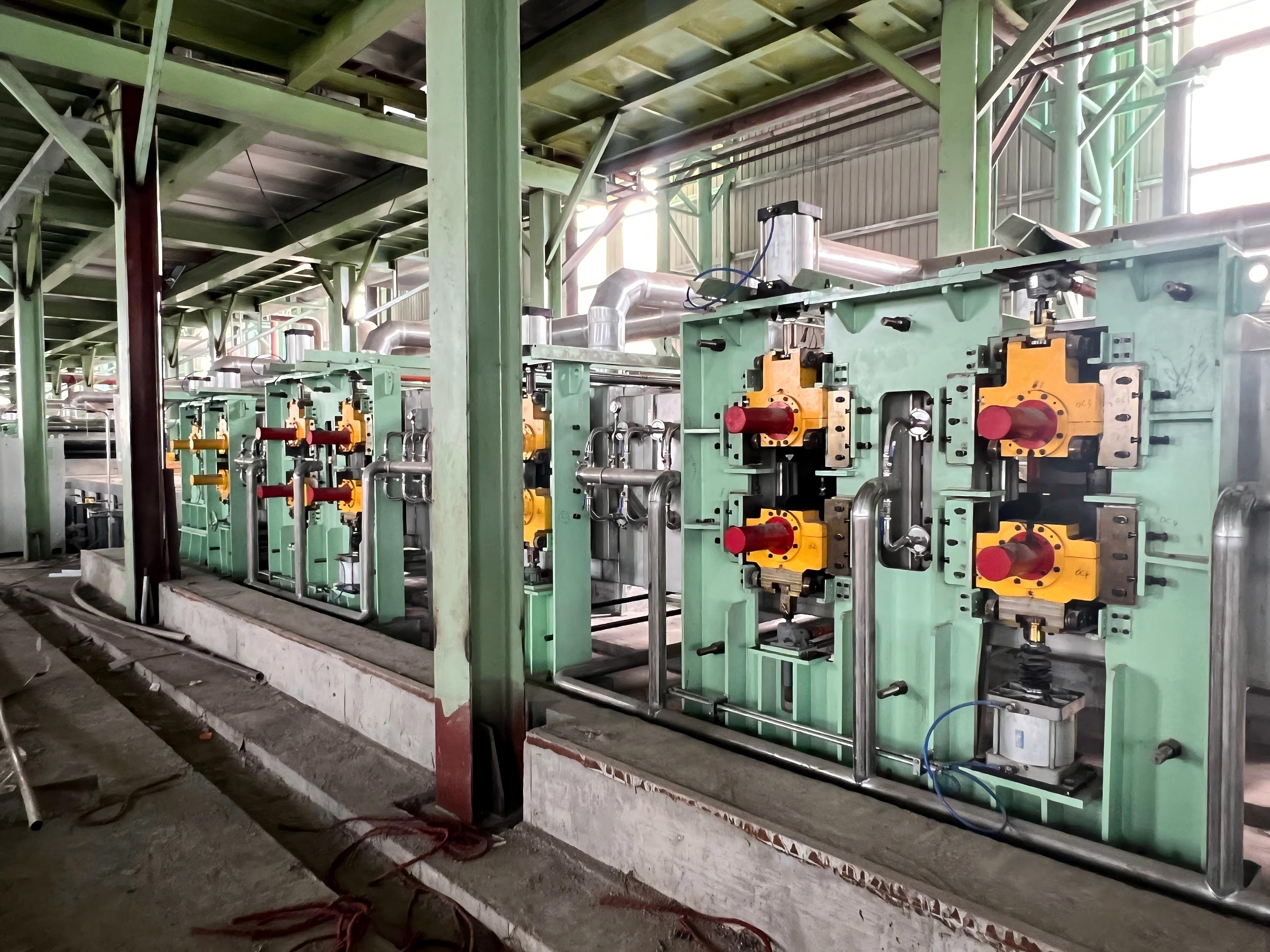

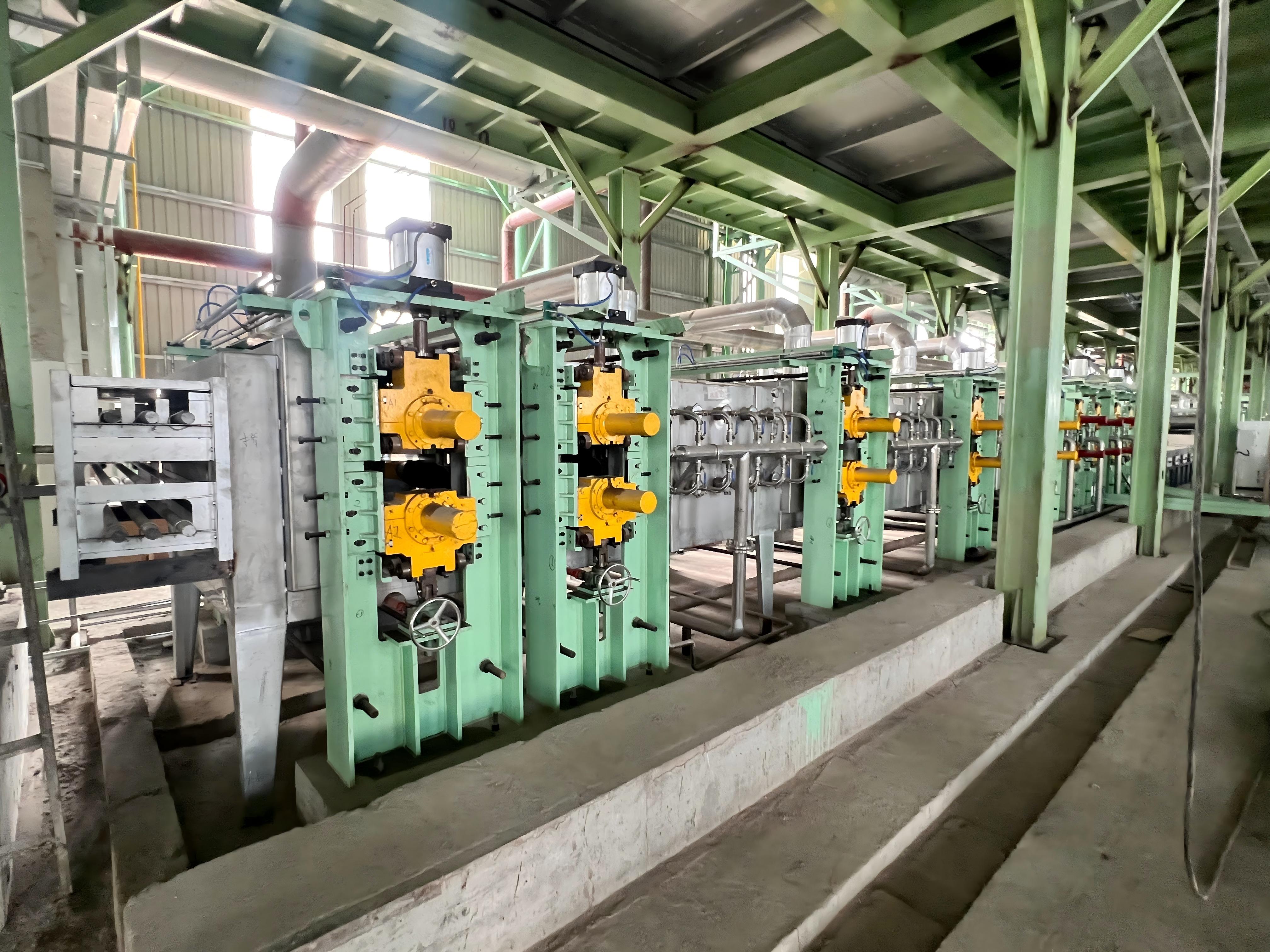

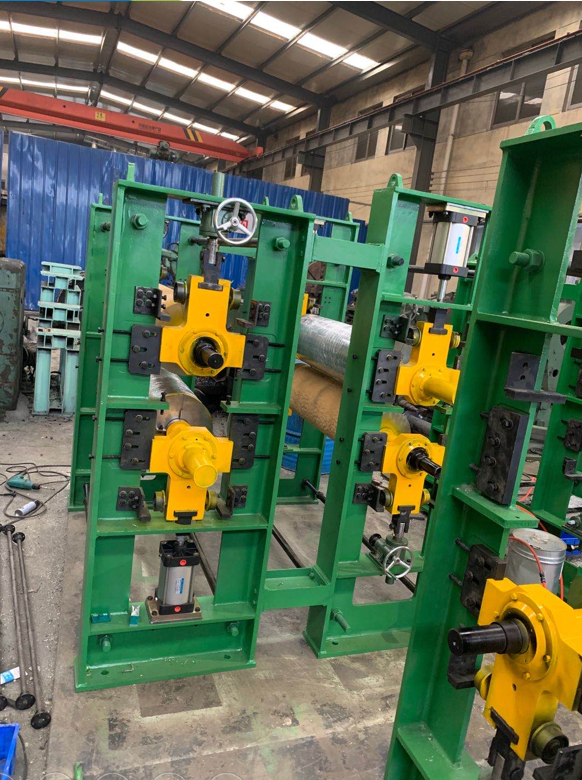

Squeezing & brushing
7
Rinsing
8
Drying
9

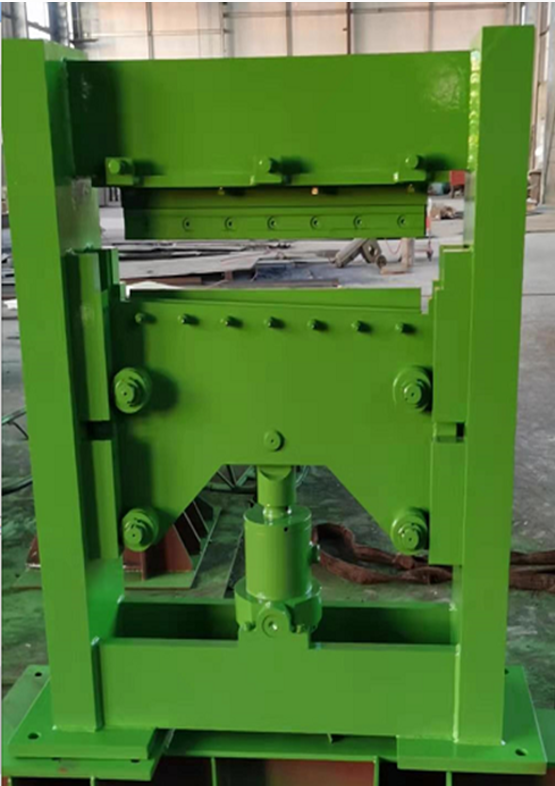

Hydraulic shear
10

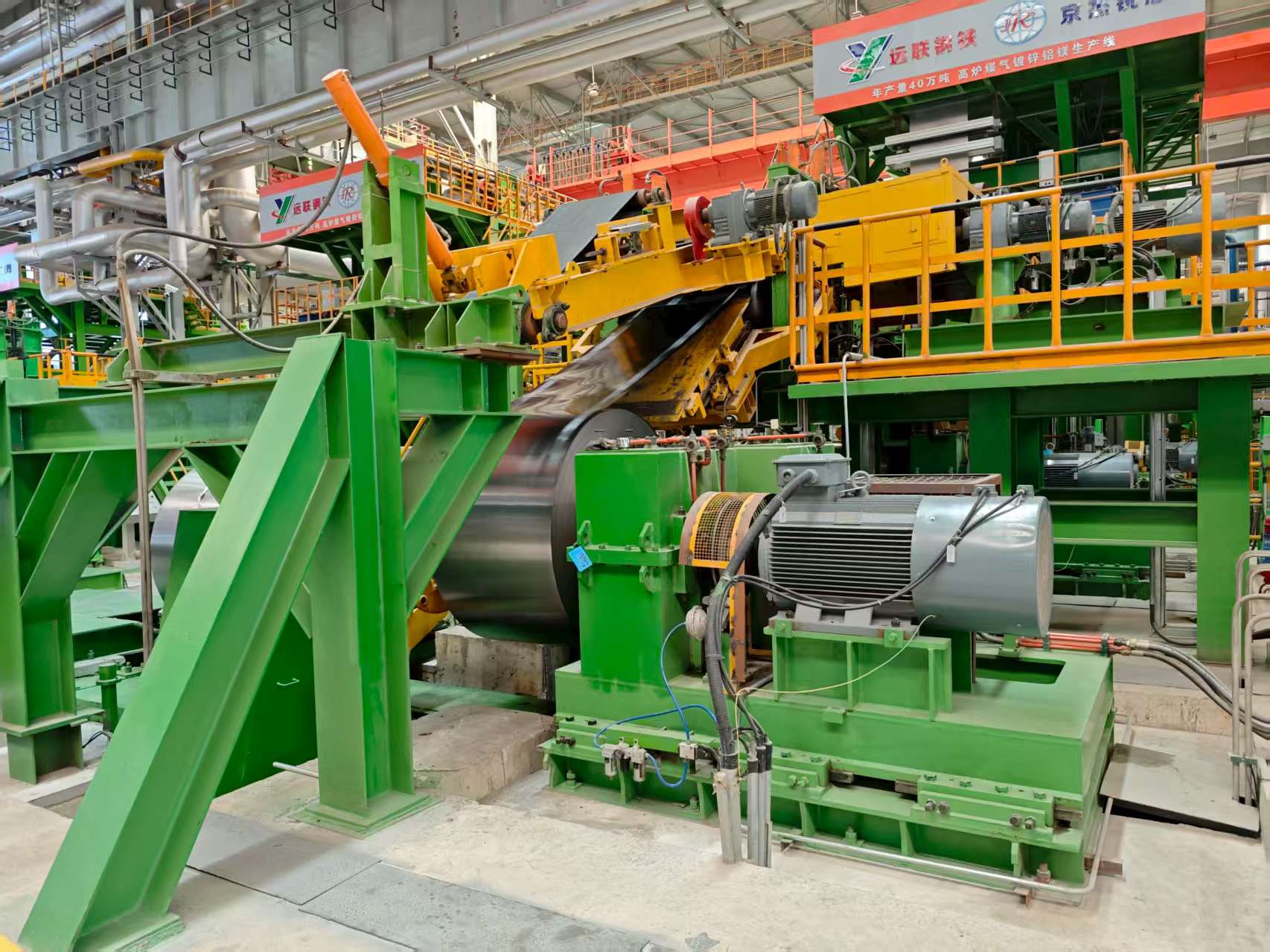

Recoiling
Main parameter
材料
低碳钢、合金钢、不锈钢等退火板带
钢卷重量
成品重量:Max20000Kg/卷
成品重量
Max20000Kg/卷
钢卷内径(开卷)
φ508/φ610mm
钢卷内径(收卷)
φ508/φ610mm
钢板厚度
0.10-1.5mm
钢板宽度
500-1250mm
延伸率
0.5-2.0%
生产线设计速度
MAX500m/min
