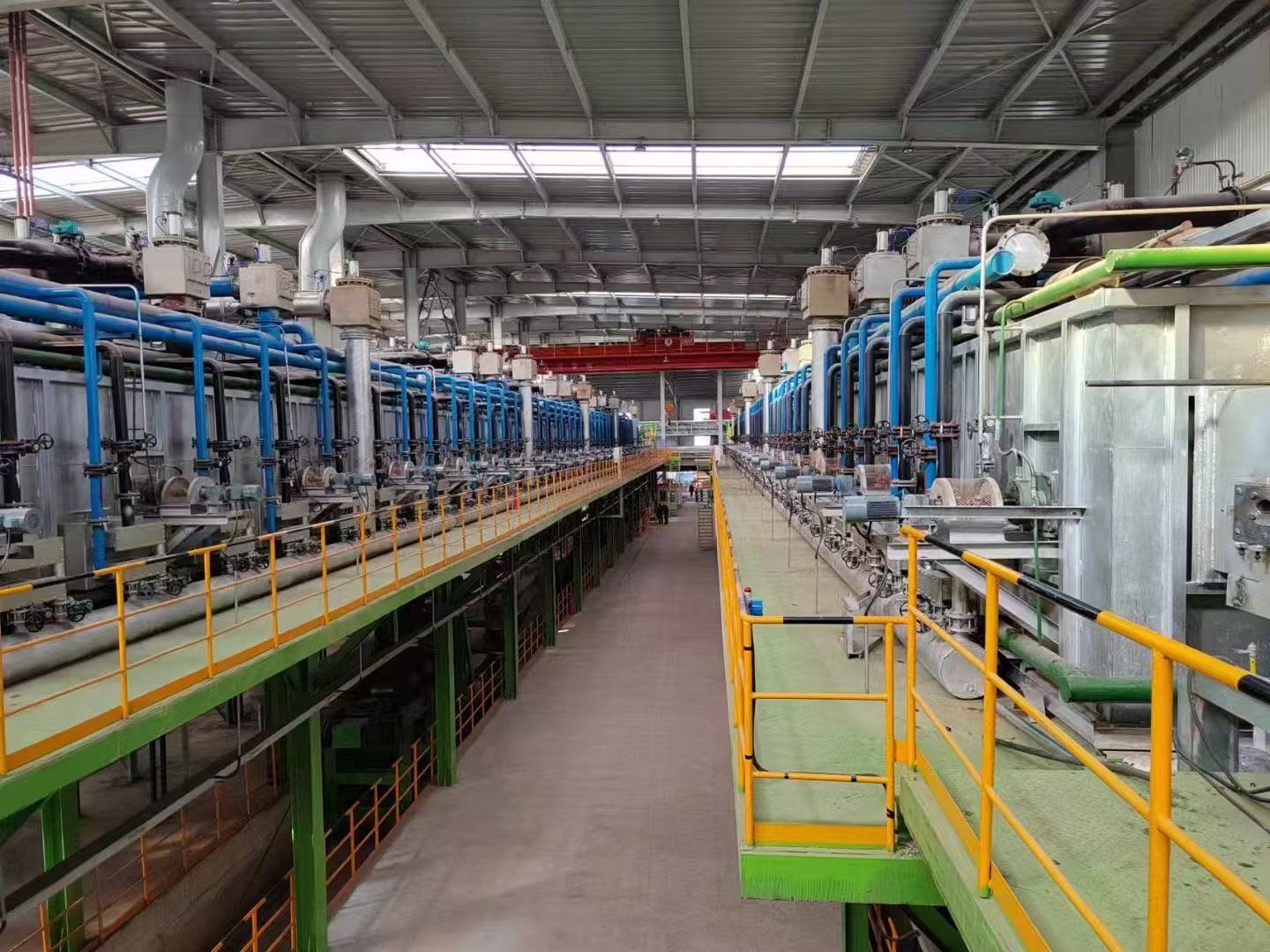

Project Name: Chifeng Yuanlian 0.3-1.2X800 Continuous Hot-Dip Galvanizing Unit (3 Lines)
Customer name: Chifeng Yuanlian Iron and Steel Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: 2020-09
Production: Designing
Operation:
Process speed: 80-230m/min, ******TV value is 120mm*m/min
Loop filling speed: Max300m/min
Transmission system power configuration: AC frequency conversion speed regulation
Zinc layer thickness adjustment range: 40-275g/㎡ (double-sided), equal thickness zinc layer
Zinc layer type: galvanized GI (reserved galvanized aluminum and magnesium)
Zinc layer state: ordinary zinc flower
Passivation method: passivation, 20-50mg/m2, single-sided (dry film)
Product quality standard: GB/T 2518-2019
Line direction: from left to right (from the operation side)
