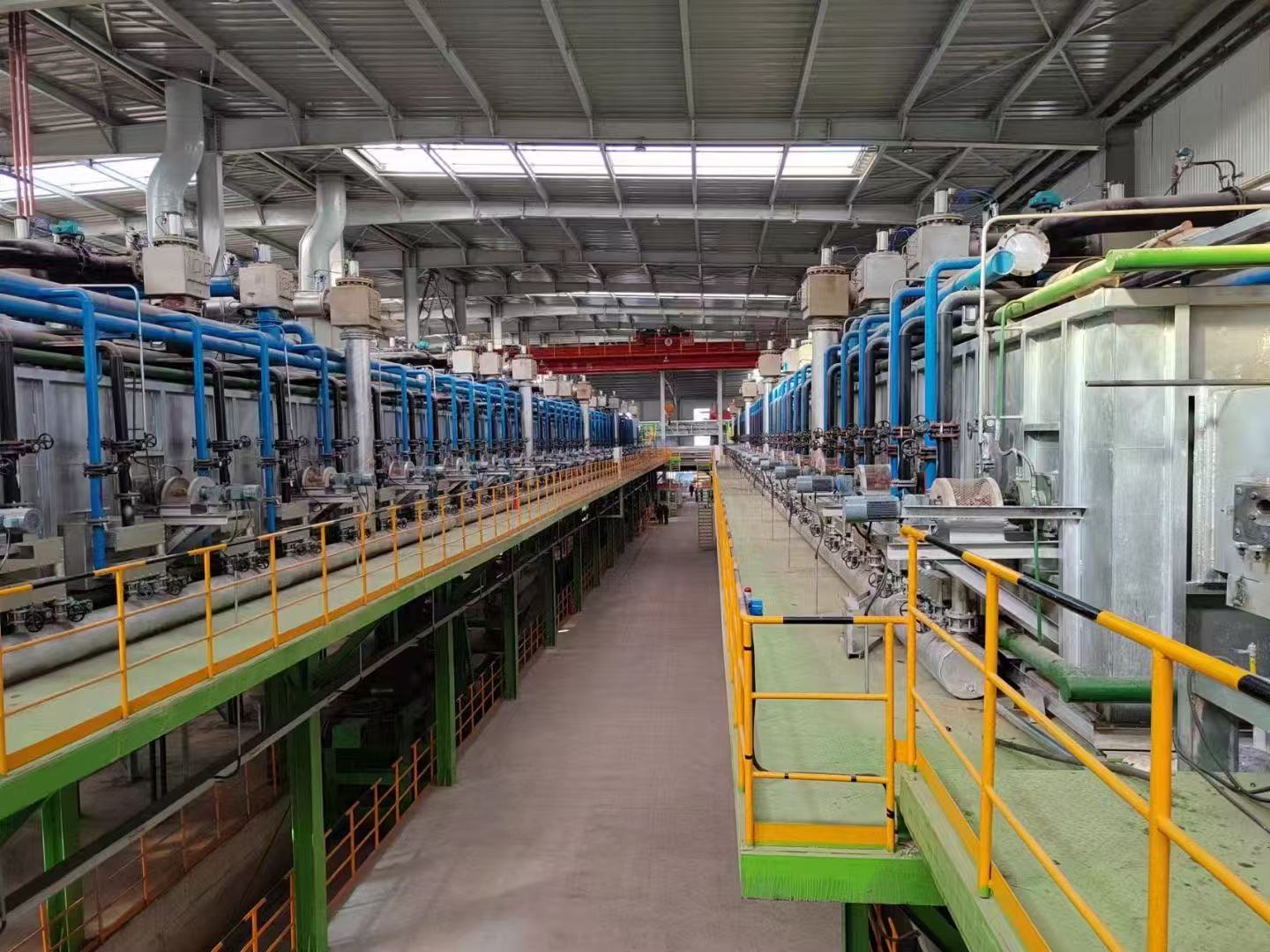

Project Name: Chifeng Yuanlian 0.5-2.5X800 Continuous Hot-Dip Galvanizing Unit (1 and 2 Lines)
Customer name: Chifeng Yuanlian Iron and Steel Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: 2020-09
Production: Designing
Operation:
Process speed: 60-150m/min, ****** TV value is 150mm*m/min
Loop filling speed: Max200m/min
Transmission system power configuration: AC frequency conversion speed regulation
Zinc layer thickness adjustment range: 40-275g/㎡ (double-sided), equal thickness zinc layer
Zinc layer type: galvanized GI (reserved galvanized aluminum and magnesium)
Zinc layer state: ordinary zinc flower
Passivation method: passivation, 20-50mg/m2, single-sided (dry film)
Product quality standard: GB/T 2518-2019
Line direction: one line from left to right, one line from right to left (from the operation side)
