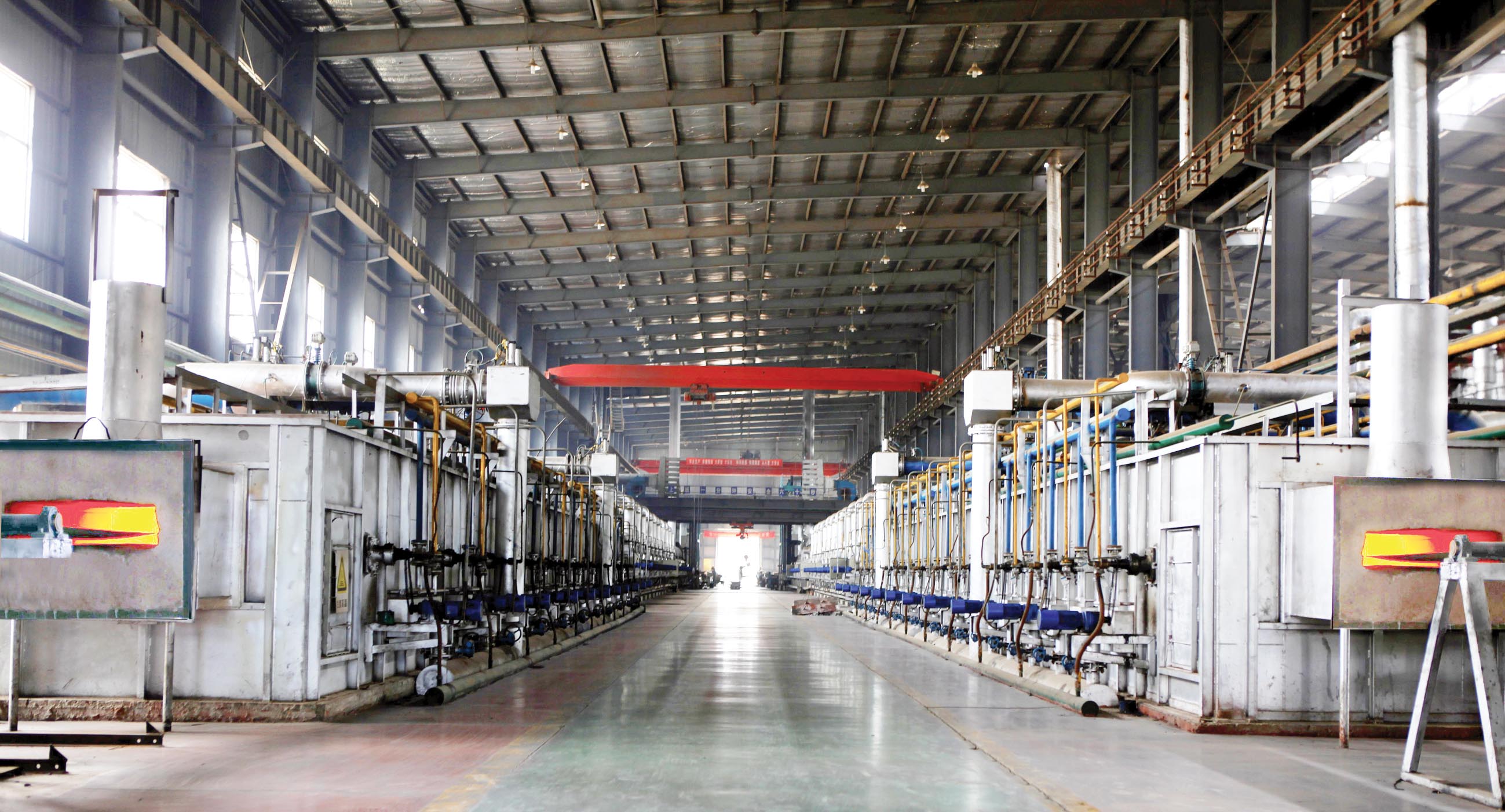

Project name: 0.8-2.5×550mm continuous galvanizing production line
Customer name: Bazhou Zhuocheng Hardware Products Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: August 6, 2013
Production: Put into production
Operation: Good

1. Basic parameters:
Product Specifications:
Steel grade: ordinary carbon structural steel
Material: Q235, Q195, Q215, 08AL
Steel coil: inner diameter Φ508mm, outer diameter Φ800-Φ1800mm
Roll weight: Max8000Kg
Strip size: thickness 0.8-2.5mm
Width: 350-550mm
Raw material specifications
Material: Q235, Q195, Q215, 08AL
Thickness: 0.8-2.5mm
Width: 350-550mm
Roll weight: Max8000Kg
Steel coil: inner diameter Φ508mm, outer diameter Φ800-Φ1800mm
Production line process parameters
Process speed: 36-112m/min, TV value is 90
Loop Filling Speed: 130% of the process speed
Transmission system power configuration: AC frequency conversion speed regulation
Zinc layer thickness adjustment range: 35-200g/㎡ (double-sided) air knife adjustment
Zinc layer state: normal zinc flower, small zinc flower, no zinc flower
Passivation method: dipping and passivation
Product quality standard: GB/T2518-2008
Line direction: from left to right (from the operation side)

2. Description of process and equipment function The main equipment is arranged according to the process as follows:
Entrance section configuration equipment:
1. 2# loading trolley → 1, 2# uncoiler→ 1, 2# uncoiler→ uncoiling and clamping machine→ five-roller clamping and straightening machine→ hydraulic cross-cutting shear→ welding platform→ 1# tensioning machine→ inlet loop (automatic centering three sets), → 2# tensioning machine→ 1# double roller centering (CPC) →runout roller→annealing furnace→ furnace nose→ zinc pot→ sinking roller→ air knife→cooling→ high tower centering machine→ high-tower steering roller→quenching tank→ extrusion roller→ 2# double roller centering (CPC)→ 3# tensioning machine→ tensioning machine→4 #张紧机→ Dipping Passivation → Passivation Drying → Outlet Loop (Automatic Centering Set) → 5# Tensioning Machine→ Hydraulic Cross-Cutting Shear→ Rewinding and Clamping Machine (Guide Plate) → Rewinder (EPC) → Discharging Trolley
Continuous operation is achieved through electronic control system, hydraulic system, pneumatic system and auxiliary equipment.
