Project Name: 2.0—3.0×450mm Continuous Galvanizing Production Line

Client Name: Bazhou Sanqiang Metal Products Co., Ltd.

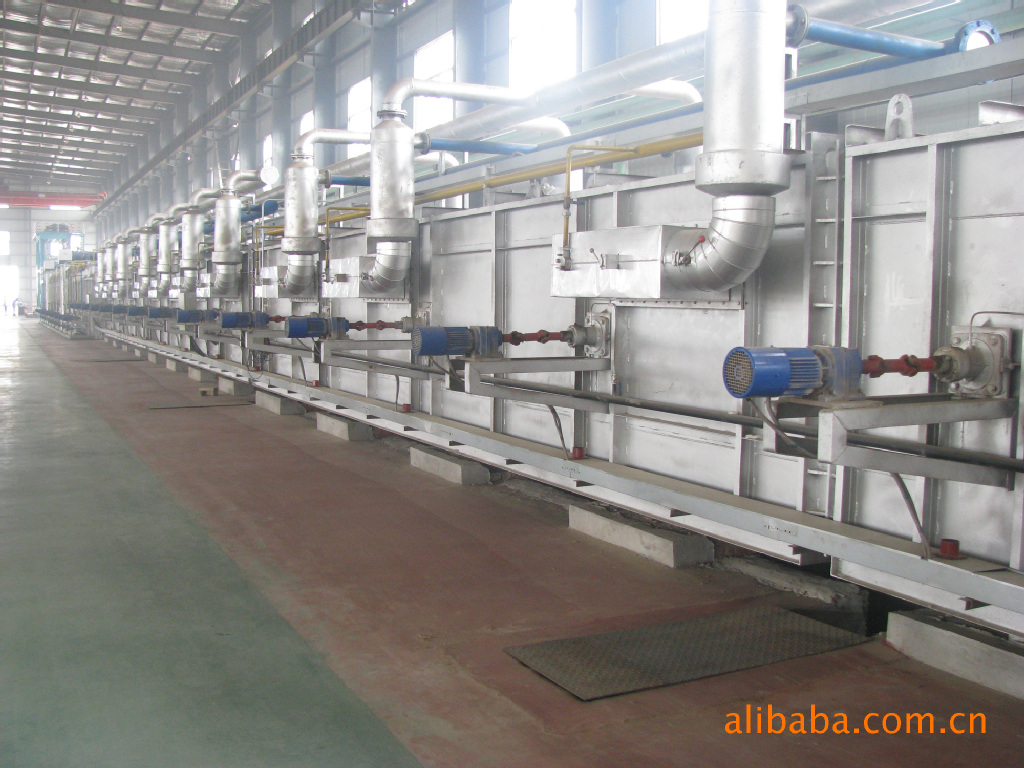

Project Nature: Annealing Furnace Upgrade and Renovation Project

Undertaking Method: General Contracting by Jingjie Ruisi

Signing Date: June 29, 2015

Commissioning Status: Commissioned on Schedule

Operation Status: Good

Basic Parameters After Upgrade and Renovation:

1. Material: Q235, Q195, Q215, 08AL

2. Steel Coil: Inner Diameter Φ508mm, Outer Diameter Φ800-1800mm

3. Coil Weight: Max 7000Kg

4. Strip Dimensions: Thickness 2.0—3.0mm; Maximum Width 450mm

5. Output: Increased by 10% compared with that before renovation

6. Energy Consumption: Average natural gas consumption per ton of steel 16.5-20.5Nm³

7. Energy Sources: Water, electricity, natural gas, compressed air, hydrogen, nitrogen

8. Process Speed: 25-38m/min

9. Looper Filling Speed: 57m/min (determined by the gear ratio of the uncoiler reducer)

10. Power Configuration of Transmission System: AC variable frequency speed regulation

11. Zinc Coating Thickness Adjustment Range: 40-200g/㎡ (double-sided) adjusted by air knife

12. Passivation Method: Roll coating passivation
