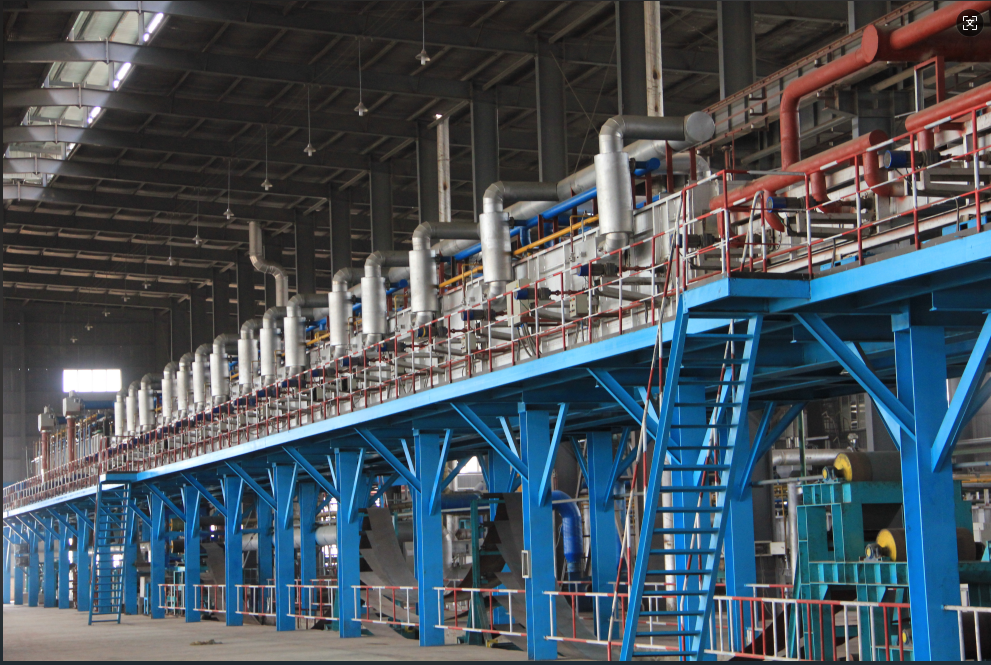

Project Name: 0.8—2.0×450mm Continuous Galvanizing Production Line

Client Name: Hebei Yongqing Tongda Metal Products Co., Ltd.

Project Nature: New Construction Project

Undertaking Method: General Contracting by Jingjie Ruisi

Signing Date: June 9, 2014

Commissioning Status: Commissioned on Schedule

Operation Status: Good

I. Basic Parameters:

1. Product Specifications

Steel Grade: Ordinary Carbon Structural Steel

Material: Q235, Q195, Q215, 08AL

Steel Coil: Inner Diameter Φ508mm, Outer Diameter Φ800-1650mm

Coil Weight: Max 6000Kg

Strip Dimensions: Thickness 0.8-2.0mm, Width 250-450mm

2. Raw Material Specifications

Material: Q235, Q195, Q215, 08AL

Thickness 0.8-2.0mm, Maximum Width 450mm

Coil Weight: Max 6000Kg

Steel Coil: Inner Diameter Φ508mm, Outer Diameter Φ800-1650mm

3. Production Line Process Parameters

Process Speed: 45-112.5m/min, TV value is 90

Looper Filling Speed: 130% of the process speed

Power Configuration of Transmission System: AC variable frequency speed regulation

Zinc Coating Thickness Adjustment Range: 40-200g/㎡ (double-sided) adjusted by air knife

Zinc Coating Status: Regular spangle, small spangle, spangle-free

Passivation Method: Dip coating passivation

Product Quality Standard: GB/T2518-2008

Production Line Direction: From left to right (viewed from the operation side)

II. Description of Process Flow and Equipment Functions

The main equipment is arranged according to the process flow as follows:

1#, 2# Feeding Car → 1#, 2# Uncoiler → 1#, 2# Uncoiling Knife → 1#, 2# Uncoiling Pinch Roll → Hydraulic Cross Cut Shear → Welding Platform → 1# Tension Machine → Entry Looper → 1#, 2# Single Roll Centering Machine → 2# Tension Machine → Tension Meter → Annealing Furnace → Furnace Nose → Zinc Pot → Sink Roll → Air Knife → Vertical Air Cooling → High Tower Deflector Roll → Horizontal Air Cooling → Quenching Tank → Quenching Squeezer → Double Roll Centering Machine (CPC) → 3# Tension Machine → Leveler → 4# Tension Machine → Dip Coating Passivation → Passivation Squeezer → Hot Air Drying → Exit Looper → (One Set of CPC Double Roll Centering) → 5# Tension Machine → Hydraulic Cross Cut Shear → Exit Pinch Roll → Coiler (EPC) → Discharging Car

Continuous operation is realized through the electronic control system, hydraulic system, pneumatic system and auxiliary equipment.
