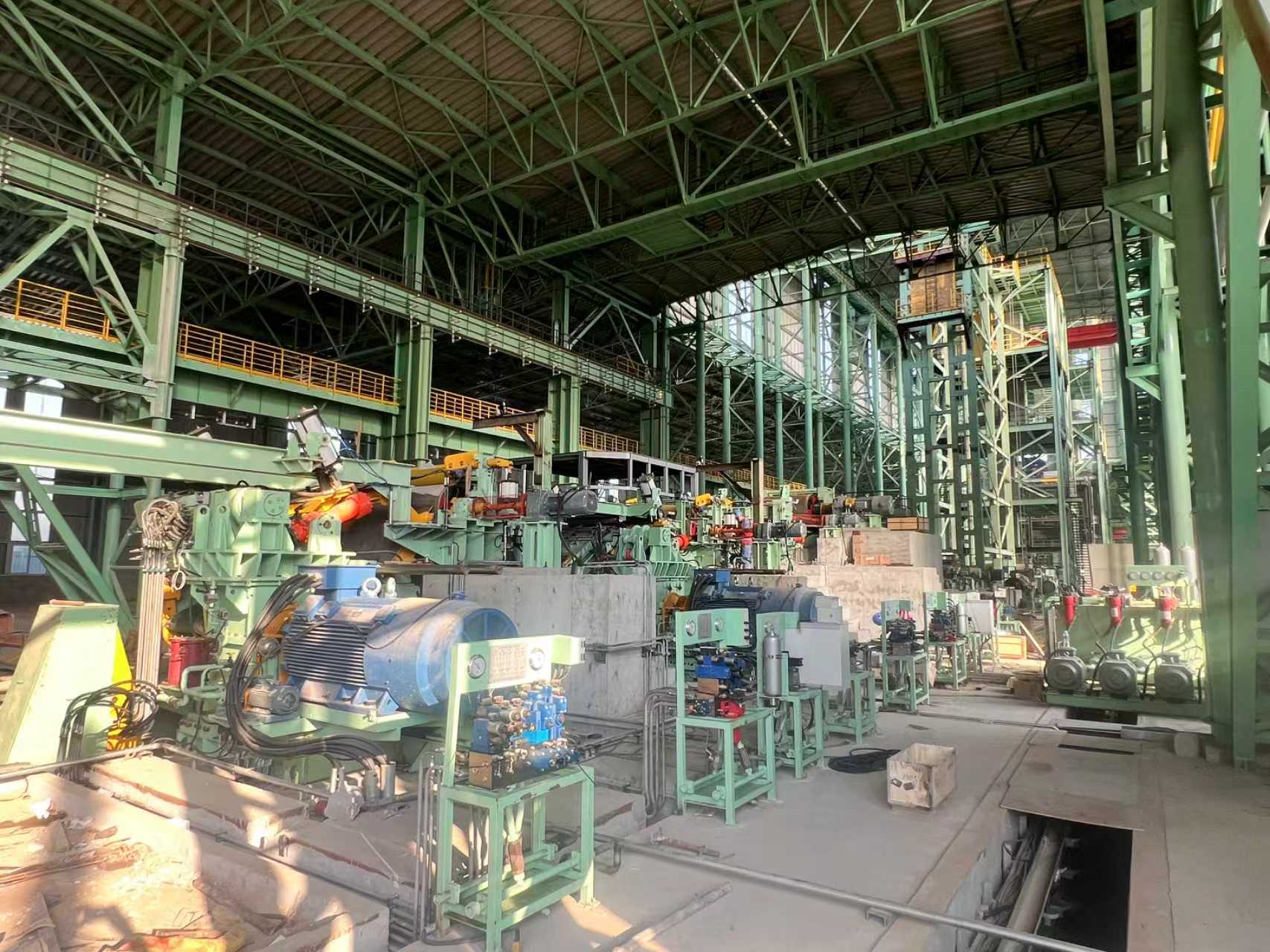

Project Name: 1.0-2.2×300mm Galvanizing Production Line

Client Name: Zhejiang Xinhong Steel Products Co., Ltd.

Project Nature: New Construction Project

Undertaking Method: General Contracting by Jingjie Ruisi

Signing Date: October 16, 2012

Commissioning Status: Under Construction

Operation Status: Good

I. Basis for Technical Scheme

This technology is based on the internationally popular Sendzimir method "principle of continuous hot-dip galvanizing for steel strips". Combining our company's past successful experience in the hot-dip galvanizing field and successful galvanizing cases using blast furnace gas, it adopts a combination of multiple mature patented technologies independently developed by our company, including regenerative non-oxidation technology (Patent No. ZL2009202466509), low-calorific-value gas radiant tube heating furnace (ZL2009202466829), energy-saving radiant tube technology (Patent No. ZL2010205353153), process heat energy recovery technology (Patent No. ZL2009202466617), and energy-saving furnace rolls (Patent No. ZL2010205353007). It is designed in accordance with the user's actual situation and the principles of economy, reliability, and maintainability.

II. Product Specifications

Steel Grade: Ordinary Carbon Structural Steel

Material: Q235, Q195, Q215, 08AL

Steel Coil: Inner Diameter ∮508mm, Outer Diameter ∮800-1800mm

Coil Weight: Max 5000 Kg

Strip Dimensions: Thickness 1.0-2.2mm, Width 180-300mm

III. Raw Material Specifications

Material: Q235, Q195, Q215, 08AL

Thickness: 1.0-2.2mm

Width: Max 300mm

Coil Weight: Max 5000 Kg

Inner Diameter: ∮508mm

Outer Diameter: ∮800-1800mm

IV. Production Line Process Parameters

Process Speed: 40~90m/min, TV value is 90

Looper Filling Speed: 130% of the process speed

Power Configuration of Transmission System: AC variable frequency speed regulation

Zinc Coating Thickness Adjustment Range: 30~280g/㎡ (double-sided) adjusted by air knife

Zinc Coating Status: Regular spangle, small spangle, spangle-free

Passivation Method: Dip coating passivation

Energy Medium: Producer cold gas, calorific value 1400 kcal/m³

Product Quality Standard: GB/T2518-2008

Production Line Direction: From right to left (viewed from the operation side)

V. Main Equipment Arrangement According to Process Flow:

1#, 2# Feeding Car → 1#, 2# Uncoiler → 1#, 2# Uncoiling Knife → 1#, 2# Uncoiling Pinch Roll → Hydraulic Cross Cut Shear → Welding Platform → Tension Machine 1 → Entry Looper → Tension Machine 2 → Double Roll Centering (CPC) → Dancing Roll → Annealing Furnace → Furnace Nose → Zinc Pot → Sink Roll → Air Knife → Cooling Fan → High Tower Centering Machine → Cooling Tower Deflector Roll → Quenching Tank → Squeegee Roll → Double Roll Centering (CPC) → Tension Machine 3 → Leveler → Tension Machine 4 → Dip Coating Passivation → Hot Air Drying → Exit Looper → Tension Machine 5 → Hydraulic Cross Cut Shear → 1#, 2# Coiling Pinch Roll (Guide Plate) → 1#, 2# Coiler (EPC) → 1#, 2# Discharging Car

Continuous operation is realized through the electronic control system, hydraulic system, pneumatic system and auxiliary equipment.
