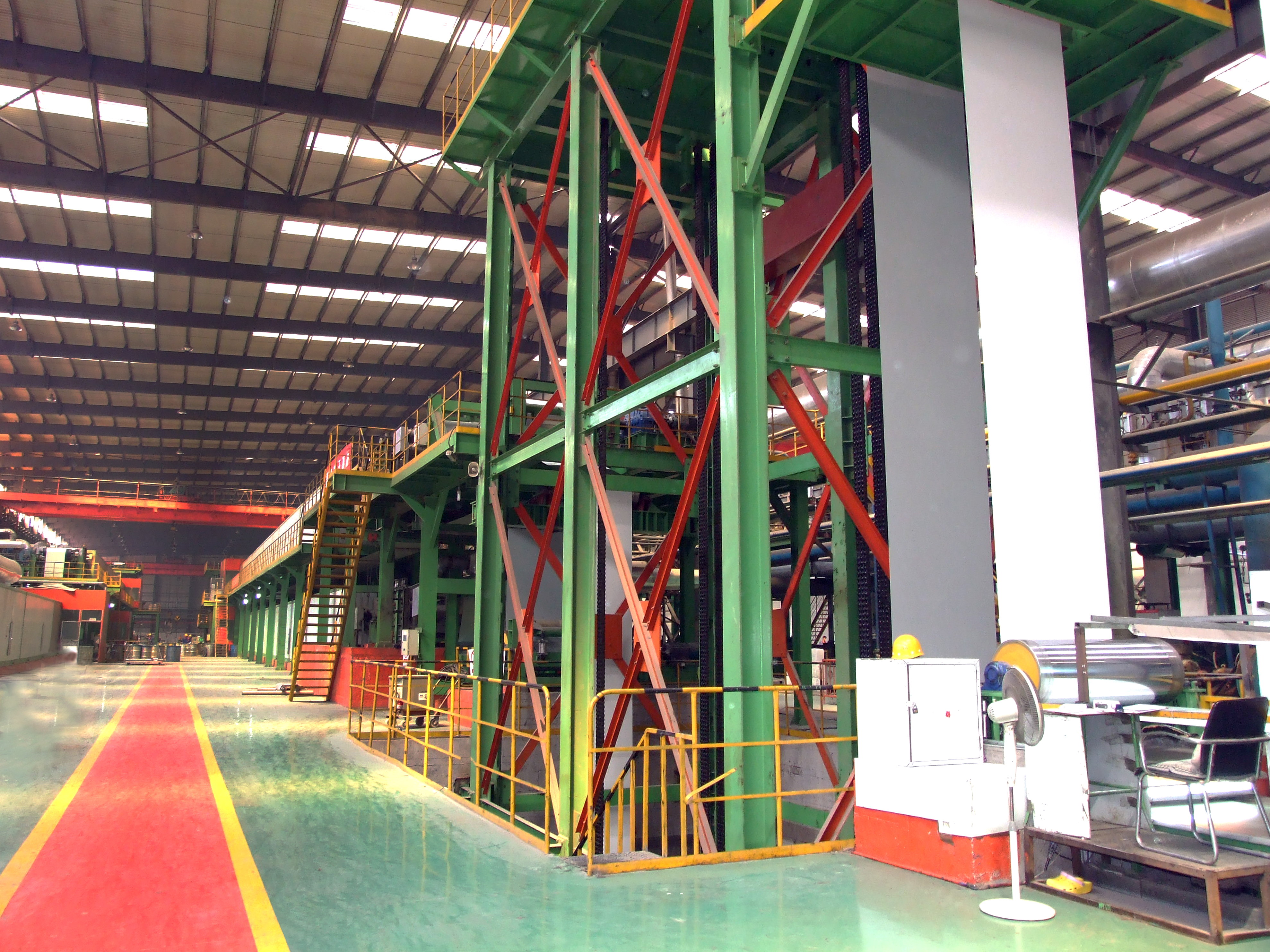

Project Name: 100m/min strip color coated steel plate production line
Customer name: Tianjin Xinyu Color Plate Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: February 17, 2011
Production: Under construction
Operation: Good
1. Basic parameters:
1. Material: galvanized steel sheet, aluminum-zinc sheet coil (including FH, yield strength <600MPa)
2. The weight of the steel coil is Max20t/roll
3. Finished product weight MaxlOt/roll
4. The outer diameter of the steel coil is Φ508-2000mm
Finished product Φ508-l250mm
5. The inner diameter of the raw steel coil is Φ508/Φ6lOmm
The inner diameter of the finished steel coil is φ508/φ6lOmm
6. The thickness of the steel plate is 0.2-1.2mm
7. The width of the steel plate is 600-l250mm
8. The production line design process speed is 1OOm/min (transmission speed Max120 m/min)
9. Energy Water, electricity, natural gas
lO. Roller coating process Continuous front and back two coatings and two drying
11. The linear speed before the inlet loop and after the outlet loop is 1 5-150m/min
12. Color board coating thickness: the thickness of the top coat dry film can be adjusted between 8-15 μm, and the thickness of the primer dry film can be adjusted between 5-12 μm
13. The galvanized substrate conforms to the national standard GB/T2518-2004 and the color plate coating thickness and paint index meet the national standard
Under the premise of accuracy, the quality index of color plate coating conforms to the relevant technical parameters in GB/T 12754-2006.
14. The width direction of the color plate roll is unilaterally ≤±l.om
15. Production program: 120,000 tons/year (according to ****** process speed corresponding to the steel plate specification 1000 mm×0.4mm).
100 m/min, 300 working days/year).
16. Production line direction: from left to right from the operation side
2. Basic process flow
The main equipment is composed of manual feeding→ uncoiling unit I, II→ two-roller clamping machine I→ two-roller clamping machine II→ head shearing machine (two groups), → welding machine→ riveting machine→ flattening roller→ tensioning machine I (four rolls), → inlet loop→ double roller centering mechanism I→ tensioning machine II (S roller) → pre-degreasing → roller brushing machine I→ degreasing → roller brushing machine II→ washing I→ washing II→ pure water washing→ hot air blowing device l→ chemical roller coating machine→ passivation drying oven→ forced air cooling device → tensioner III. (S roll) → S roll centering mechanism→ primer roller coating machine→ primer leveling→ primer curing furnace→ forced air cooling device 2→ primer strong cooling chamber (water cooling) S roller → S roller centering mechanism III.→ hot air blowing device 2→S roller tensioner IV.(S roller) → turn to centering mechanism IV. (S roller) → topcoat roller coating machine 1.2→ topcoat leveling→ topcoat curing furnace→ forced air cooling device 3→ topcoat strong cooling chamber (water cooling) → S roller centering mechanism V.→ hot air blowing device 3→ tensioning machine V. (double S roller) → outlet loop → centering mechanism VI. (double roller) → cold laminating unit→ S roller tensioning machine VI. (S roller) → belt clipping shearing machine III.→ two-roller clamping machine IV.→ servo retractionThe winding unit → manual discharge (with belt rewinder). The main equipment also includes electronic control system, hydraulic system, and pneumatic system. Auxiliary equipment also has a steel coil mobile trolley.
