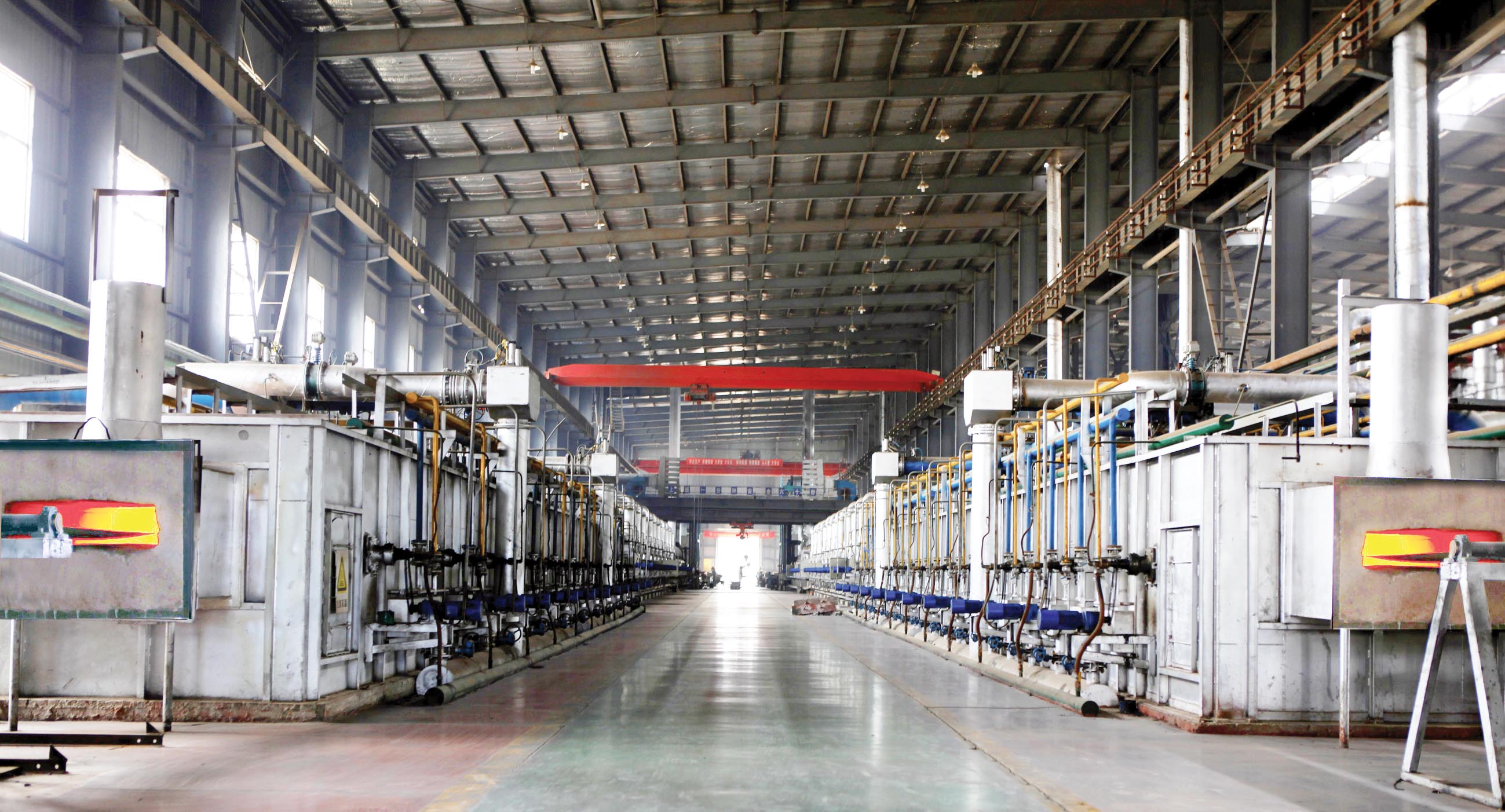

Project Name: 1.5-3.0*500mm Continuous Galvanizing Production Line
Customer name: Shandong Boxing County Luyang Iron and Steel Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: January 20, 2011
Production: Under construction
Operation: Good
1. Basic parameters:
1. Product specifications
Steel grade: ordinary carbon structural steel
Material: Q235, Q195, Q215, O8AL
Steel coil: inner diameter Φ508mm, outer diameter Φ800-1600mm
Roll weight: Max 4000Kg
Strip size: thickness 1.5-3.0mm, width 250-500mm
2. Raw material specifications
Material: Q235, Q195, Q215, O8AL
Thickness: l.5-3.Omm
Width: Max500mm
Roll weight: Max4000 kg Inner diameter: Φ508
Outer diameter: Φ800-1600mm
3. Production line process parameters
Process speed: 15-40m/min
Loop filling speed: 130% of the process speed
Transmission system power configuration: AC frequency conversion speed regulation
Zinc layer thickness adjustment range: 60-200g/m2 (double-sided) air knife adjustment
Zinc layer state: normal zinc flower, small zinc flower, no zinc flower
Passivation method: dipping and passivation
Product quality standard: GB2518-88
2. Description of process and equipment function
The main equipment is arranged according to the process as follows:
1. 2# loading trolley →L, 2# uncoiler → uncoiler 1, 2→ uncoiling clamping 1, 2→ Hydraulic cross-cutting shear → welding platform → tensioner 1→ Inlet loop (horizontal) → double roller centering (CPC) → tensioner 2→ tensioning roller →annealing furnace→ furnace nose→ zinc pot → sinking roller→ air knife → cooling fan→ cooling tower steering roller→ 90-degree guide system→ quenching tank→ extrusion roller→ double roller centering (CPC) → tensioning machine 3→ tensioning machine→ dipping and passivation →hot air drying→ outlet loop → tensioner 4→ hydraulic cross-cutting shear → winding and clamping (guide) → winding machine (EPC) → unloading trolley
