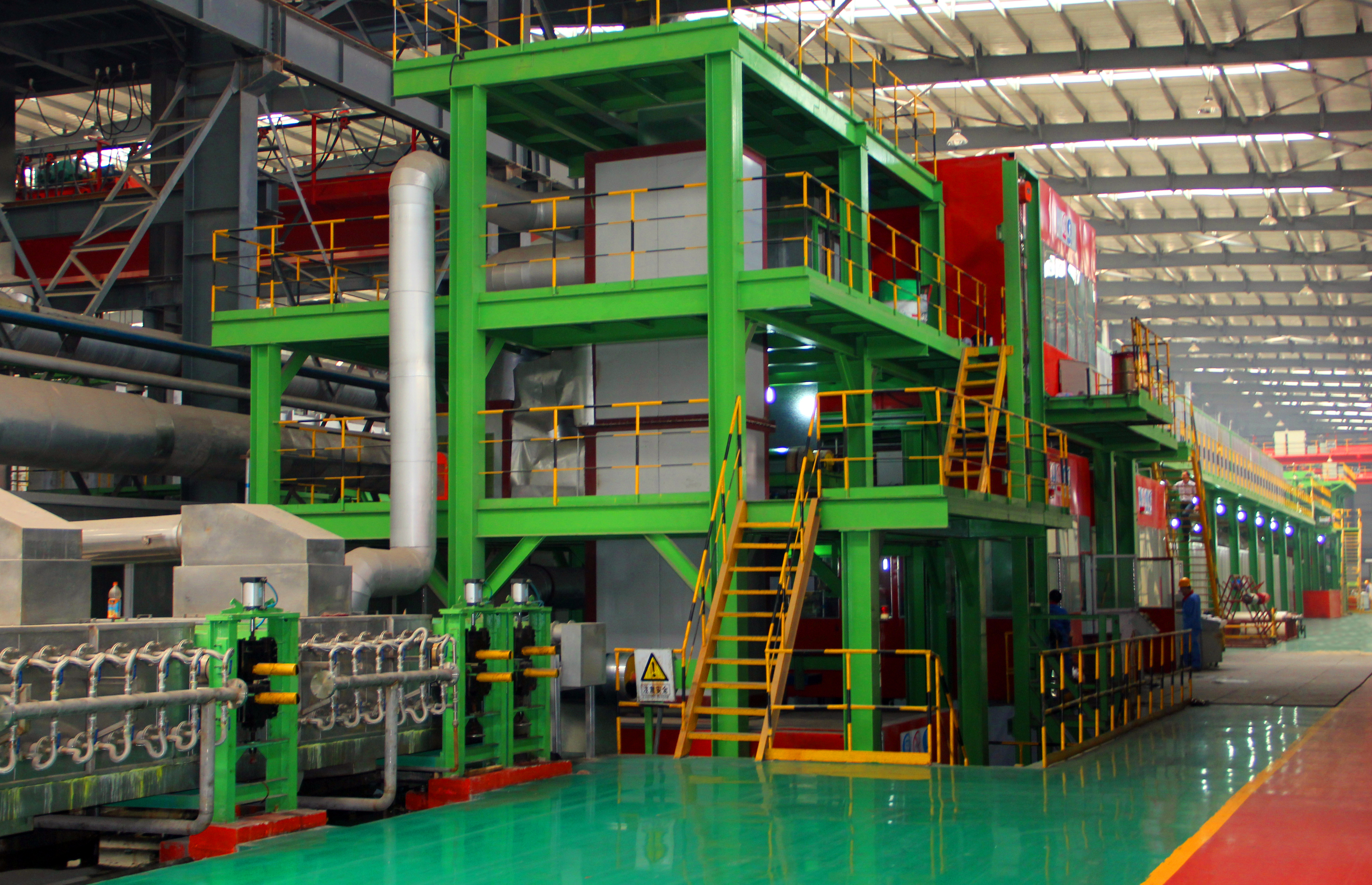

Project Name: 1450mm color coating production line
Customer Name: Vietnam
Project nature: new construction
Undertaking method: joint contracting
Signing time: April 19, 2010
Production: Under construction
Progress: Good
1. Basic parameters:
1. Material: galvanized steel coil
2. Steel coil weight: Max25t/roll
3. Finished product weight: 5-10t/roll
4. Outer diameter of steel coil: φ900-2100mm
5. Inner diameter of steel coil: φ508/φ610mm
6. Steel plate thickness: 0.2-1.0mm
7. Steel plate width: 800-1250mm
8. Production line design process speed: Max80m/min
9. Energy: steam, water, electricity
10. Roller coating process: two coatings and two drying on the front and back sides continuously
11. The linear speed before and after the inlet loop is max120m/min
12. Color plate coating thickness: the thickness of the front single layer dry film can be adjusted between 8-15μm, and the thickness of the front and back single layer primer dry film can be adjusted between 5-15μm
13. Under the premise that the galvanized substrate complies with the national standard GB2518-88 and the color plate coating thickness and paint index meet the national standard, the color plate coating quality index meets the relevant technical parameters in GB12754/91.
14. The width direction of the color plate roll is deviated from the deviation of the layer on one side≤± 1.0mm
15. Production program: 100,000 tons/year (calculated according to the steel plate specification of 1250 mm×0.45mm corresponding to the ****** process speed, 300 working days/year, 24 hours/day).
2. The main equipment is composed of manual feeding, uncoiling unit I., II., two-roller picking machine I., two-roller picking machine II., head-to-head shearing machine, stitching machine, flattening machine, tensioning machine I., steel plate storage unit I., centering mechanism I., tensioning machine II., pre-degreasing, roller brushing machine, degreasing, roller brushing machine, washing I., washing II., pure water washing, air purge device I., chemical roller coating machine, water vapor drying furnace, tensioning machine III., centering mechanism II., primer roller coating machine, primer curing furnace, air purge device II., primer strong cold chamber, centering mechanism III. , air purge device III., steering centering mechanism IV., topcoat roller coating machine, topcoat curing furnace, spray cooling device, topcoat strong cooling chamber, centering mechanism V., air purge device V., tensioning machine IV., steel plate storage unit II., tensioning machine V., shearing machine, two-roller pinch feeder III., servo winding unit, manual unwinding.
