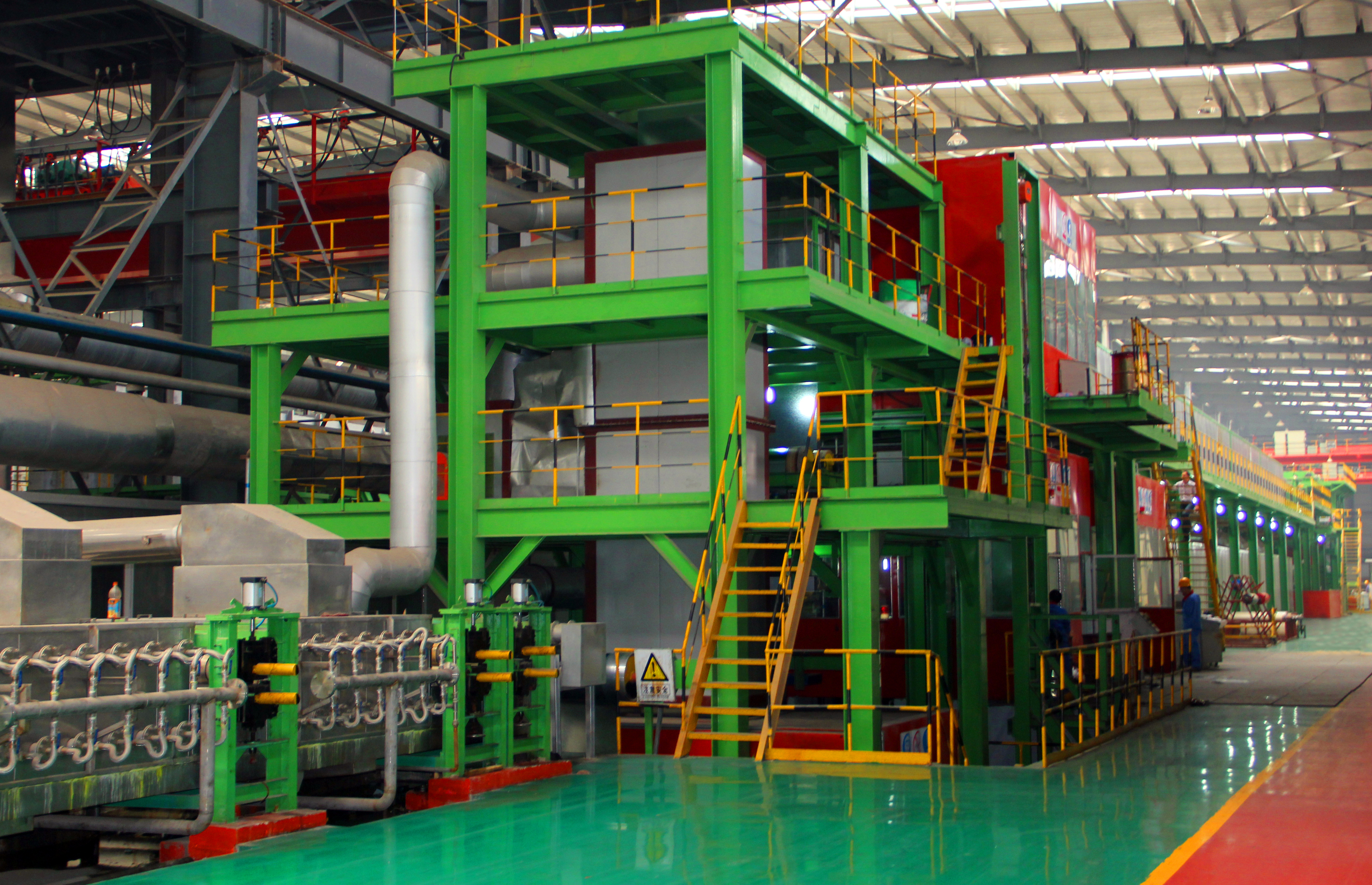

Project Name: 1450mm Continuous Color Coating Production Line
Customer name: Tianjin Xinyu Color Plate Co., Ltd
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: April 25, 2010
Production: Under construction
Progress: Good
1. Basic parameters:
1. Material: galvanized steel sheet, aluminum-zinc sheet coil (including FH, yield strength <600MPa)
2. Steel coil weight: Max20t/roll
3. Finished product weight: Max10t/roll
4. Outer diameter of steel coil: raw material φ508-2000mm
The finished product φ508-1250mm
5. Inner diameter of raw steel coil: φ508/φ610mm
Inner diameter of finished steel coil: φ508/φ610mm
6. Steel plate thickness: 0.2-1.2mm
7. Steel plate width: 600-1250mm
8. Production line design process speed: 100m/min (transmission speed Max120 m/min)
9. Energy: water, electricity, natural gas
10. Roller coating process: two coatings and two drying on the front and back sides continuously
11. The linear speed before the inlet loop and after the outlet loop is 15-150m/min
12. Color board coating thickness: the thickness of the dry film of the top coat can be adjusted between 8-15μm, and the thickness of the dry film of the primer can be adjusted between 5-12μm
13. Under the premise that the galvanized substrate complies with the national standard GB/T2518-2004 and the color plate coating thickness and paint index meet the national standards, the color plate coating quality index meets the relevant technical parameters in GB/T 12754-2006.
14. The width direction of the color plate roll is deviated from the deviation of the layer on one side≤± 1.0mm
15. Production program: 120,000 tons/year (according to the ****** process speed corresponding to the steel plate specification 1000 mm×0.4mm, calculated at 100 m/min, 300 working days/year).
16. Production line direction: from left to right from the operation side
2. The main equipment is composed of the following in order: manual feeding uncoiling unit I. II. Two-roller pinch feeder I. Two-roller clamping machine II. Flush shearing machine (two groups) Welding machine Riveting machine Flattening roller Tensioner I. (four rollers) Inlet loop Double roller centering mechanism I. Tensioning machine II. (S roller) Pre-degreasing Roller brush machine I. Degreasing Roller brush machine II. Water washing I. Washing II. Pure water washing Hot air blowing device 1 Chemical roller coating machine Passivation drying furnace Forced air cooling device 1 Tensioning machine III. (S roller) S roll centering mechanism Primer roller coating machine Primer leveling Primer curing furnace Forced air cooling device 2 Primer strong cold chamber (water cooling) S roller S roll centering mechanism III. Hot air blowing device 2 S roller tensioner IV. (S roller) Steering centering mechanism IV. (S roller) Top coat roller coating machine 1.2 Top coat leveling Top coat curing furnace Forced air cooling device 3 Top coat strong cold chamber (water cooling) S roller centering mechanism V. Hot air blowing device 3 Tensioner V. (double S roller) Outlet loop Centering mechanism VI. (double roller) Cold laminating unit S roller tensioner VI. (S roller) Belt clipping shearing machine III. Two-roller clamping machine IV. Servo winding unit Manual unloading (with belt rewinder).
