Project Name: 900mm Continuous Hot-dip Galvanizing Production Line 2#
Customer name: Zhejiang Yuanli Group
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: June 3, 2009
Production status: On time production
Operation: Good condition
Basic parameters:
Steel grade: ordinary carbon structural steel
Material: Q235, Q195, Q215, 08AL
Steel coil: inner diameter ∮ 508mm, outer diameter ∮ 800-1600mm
Roll weight: Max 5600 kg
Strip size: thickness 1.2-3.0mm, width 600-650mm
Process speed: 20~50m/min
Loop filling speed: 130% of the process speed
Transmission system power configuration: AC frequency conversion speed regulation
Zinc layer thickness adjustment range: 50~300g/㎡ (double-sided) air knife adjustment
Zinc layer state: normal zinc flower, small zinc flower, no zinc flower
Passivation method: dipping and passivation
Product quality standard: GB2518-88

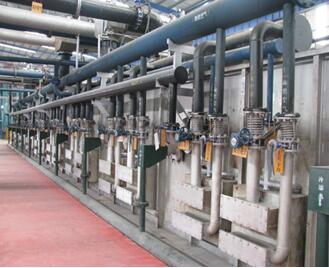

The main equipment is arranged according to the process as follows:
1. 2# feeding trolley →1. 2# Uncoiler → uncoiler 1, 2 → uncoiling clamping 1, 2 → hydraulic cross-cutting shear → welding platform → tensioner 1 → inlet loop → tensioner 2→ double roller centering (CPC) → runout roller → annealing furnace → furnace nose → zinc pot → sinking roller → air knife → cooling fan → cooling tower steering roller →quenching tank → extrusion roller → double roller centering (CPC) → tensioner 3→ tensioning machine → dipping and passivation → hot air drying → outlet loop → tensioner 4 → hydraulic cross-cutting shear → winding and clamping (guide) → winder (EPC) → discharge trolley a
