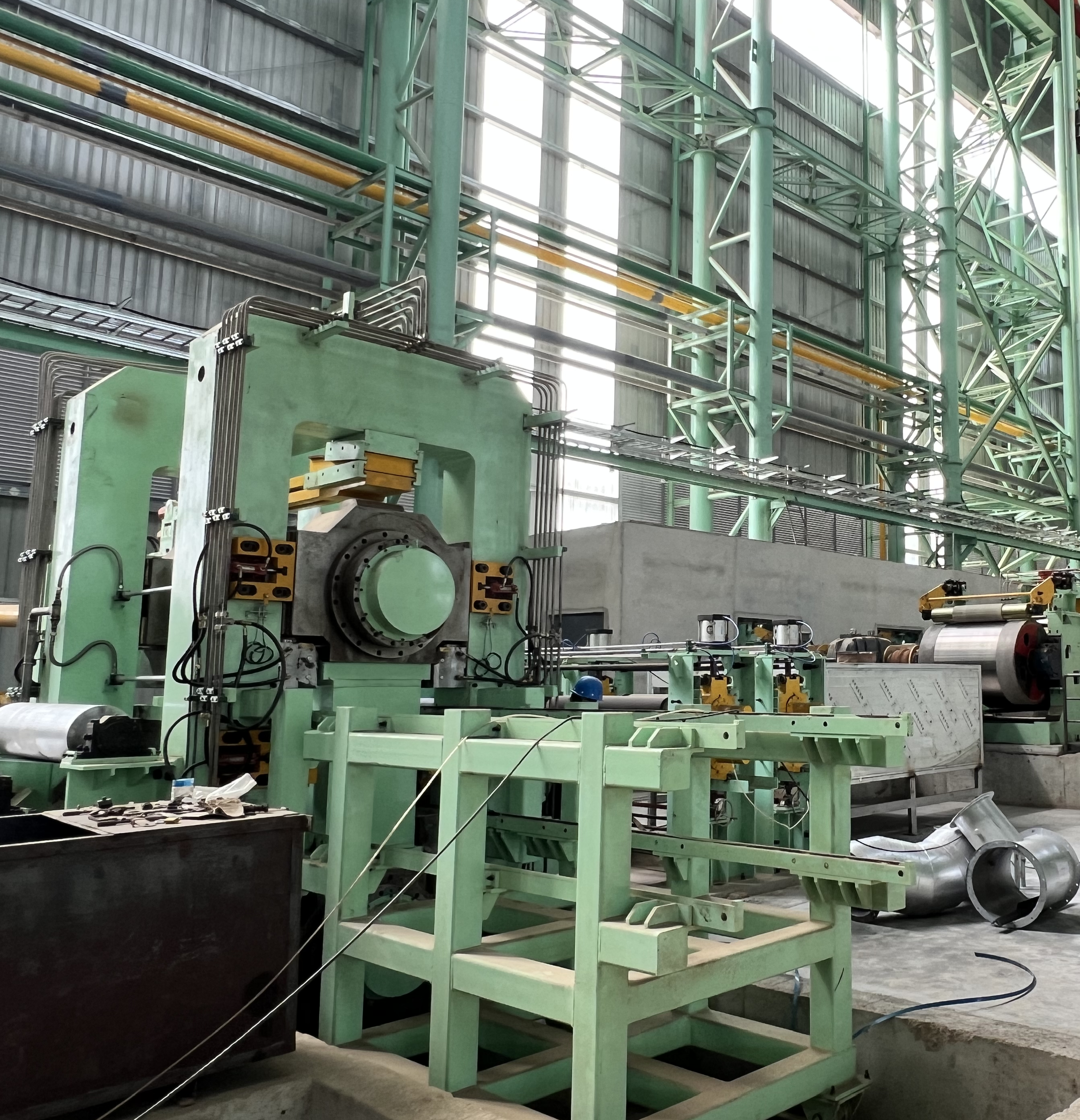

Project Name: 750mm leveling unit
Customer name: Zhejiang Yuanli Group
Project nature: new construction
Undertaking method: Jingjie Ruisi general contracting
Signing time: December 22, 2009
Production status: On time production
Operation: Good condition
Unit parameters:
1. Incoming material: ordinary carbon steel, low-alloy steel, high-quality carbon structural steel
2. Thickness specification: 0.3-1.5mm
3. Width specification: 600mm
4. ****** roll weight: 5.6T(max)
5. ****** elongation: 1%-4%
6. Coil diameter: Ф508mm/Ф1300mm
7. Unit speed: 450m/min
Main technical parameters of the unit:
1. ****** leveling pressure: 3000kN
2. ****** leveling speed: max. 450 m/min
3. Uncoiling tension: 3~30kN
4. Winding tension: 5~40kN
5. Tension between the inlet tension roller and the leveling machine: 6.5~40kN
6. Tension between the outlet tension roller and the leveling machine: 7.5~50kN
7. Working roll size: ?500/?470×700 mm
8. Tension roller size: ?650×700 mm
9. The diameter of the uncoiler drum: ?508mm
Expansion and contraction range: ?480~?520 mm
10. Drum diameter of the winder: ?508mm
Expansion and contraction range: ?480~?508 mm
11. AGC hydraulic cylinder: two
12. Frame column section: 350×400mm
13. Push up the pressure of the hydraulic system: 25 MPa
14. General hydraulic system pressure: 10 MPa
Basic process:
Upper winding trolley → unwinding machine→ unwinding scraper→ front S tension roller→ hydraulic shearing → seam welding machine→ tension measurement roller→ second roller leveling machine (including anti-wrinkle roller→ tension measurement roller→ thickness gauge→ lubricating device→ hydraulic shear→ waste collection hopper→ rear S tension roller→ steering guide plate→ winding machine→ unwinding trolley
